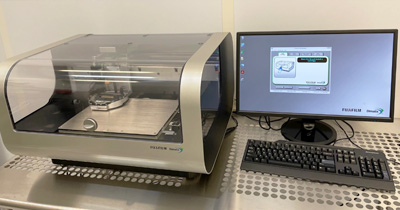

The Fujifilm Dimatix DMP-2850 ink-jet materials printer is a precision fluid dispensing system with accurate positioning control. A broad range of fluids (conductive, resistive, dielectric, and biological materials) can be printed onto complex surfaces at micrometer resolution. It utilizes a MEMS-based piezo cartridge and can create patterns over an area of about 20 cm × 30 cm and handle substrates up to 25 mm thick. A waveform editor and a drop-watch camera system allow manipulation of the electronic pulses to the piezo jetting device for optimization of the drop characteristics as it is ejected from the nozzle. The additional fiducial camera enables alignment between printed layers.
Instrument Details
Features
Substrate thickness < 25 mm
Printable area: 210 mm × 315 mm (< 0.5 mm substrate thickness) or 210 mm × 260 mm (0.5 – 25 mm thickness)
Position Repeatability: ± 25 μm
Vacuum substrate holder: temperature adjustable, ambient to 60° C (140° F)
Samba® Cartridge Usable ink capacity: up to 1.5 ml (user-fillable) Materials compatibility: many water-based, solvent, acidic or basic fluids 2.4 pL drop volume, ~30 μm dot size (depending on inks and substrates) 12 nozzles, single row Ink viscosity 4 - 8 cp Temperature adjustable, ambient to 70°
