Features

• Cold source Field Emission SEM
• 1.4nm resolution at 1kV with beam deceleration.
• 1.0nm resolution at 15kV.
• Double condenser optics.
• High resolution Through The Lens (TTL) SE detector (upper).
• In chamber topographical SE detector (lower).
• Large 5axis computer eucentric stage (110mm x 110mm).
• Oxford INCA SiLi EDS System.
• 1.5kV beam deceleration mode for low-voltage imaging.
• Leica cryo stage with VCT100 transfer system and suite of cryogenic preparation equipment.
• For cryo-SEM, contact BioCryo for information

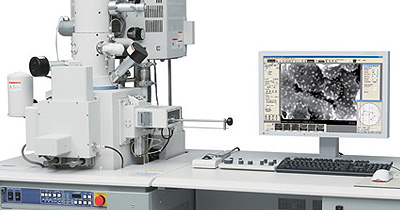

Hitachi S4800-II cFEG SEM
