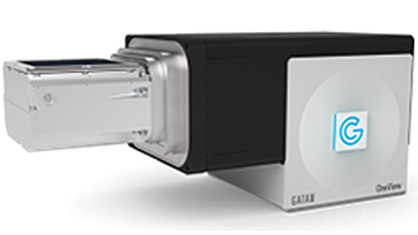

Gatan Oneview - JEOL ARM200CF

Direct Electron Detector

Specifications

Usage at accelerating voltage on ARM300F (kV) 200, 80, 60
Maximum pixel resolution (pixels) 4096 × 4096
Speed in frames per second (fps) 25 (4k × 4k pixels); 200 (1k by 1k pixels)
Preferred record modes (in situ) Video, (scanning) diffraction(c), TEM imaging
Detector type Phosphor-CMOS
Detective Quantum Efficiency (DQE), full-frame 200kV; @0.50 Nyquist DQE >0.10
