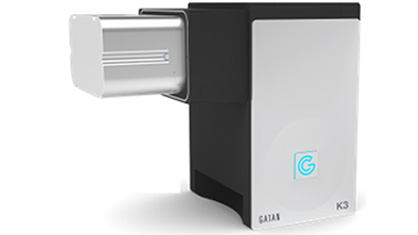

Gatan K3 IS - JEOL ARM300F

Direct Electron Detector

Specifications

Usage at accelerating voltage on ARM300F (kV) 300, 80
Maximum pixel resolution (pixels) 5760 × 4092 (94 Mpx in super-resolution mode)
Speed in frames per second (fps) 150 (5760 × 4092 pixels); >3500 (256 by 256 pixels)
Preferred record modes (in situ) Video, scanning diffraction(c), TEM imaging
Detector type Monolithic Direct Electron Detector (e- counting)
Detective Quantum Efficiency (DQE), full-frame   300kV; @0.50 Nyquist DQE >0.71
